Modular acoustic valve enclosure “MAVE”

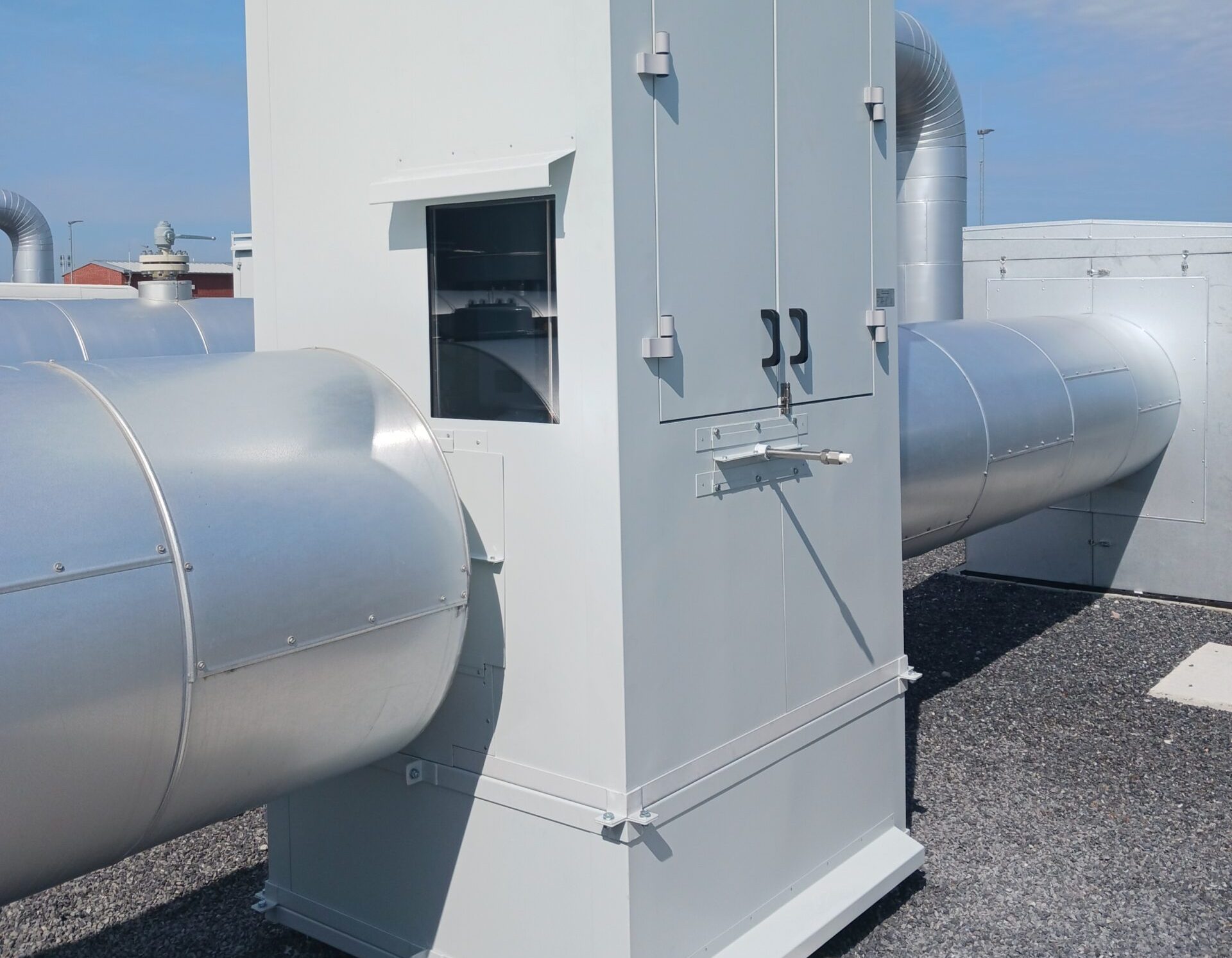

Modular acoustic valve enclosure “MAVE”, is a dedicated product of Energopiast for use on gas compressor stations in reducing noise emitted to the environment by anti-pumping valves. When designing, the discriminator for the used enclosure MAVE.Dxx.Hyy should be taken into account, where Dxx – is the diameter of the pipeline, Hyy – the height of the pipeline axis from the plane of the valve foundation.The effectiveness of the modular acoustic valve enclosure is an average of 15/20 dBA, this effectiveness depends on the noise emission of the valve (spectrum, sound level).

Modular acoustic valve enclosure consists of:

• 2 bottom modules
• 2 upper modules
• roof module with plate acoustic silencer EPTA.60.60.
• 2 sealing modules
• inspection door

The individual modules comprising the MAVE.Dxx.Hyy acoustic enclosure are equipped with: a steel support structure, acoustic panels of the EP-coustic system, type Eco-coustic 3505, 3610, 3715 etc., selected based on the required effectiveness. The panels are fixed to the support structure, EP-UD3 and EP-UD5 system seals are used between the panels and the structure.

To ensure ventilation inside the enclosure, gravity ventilation was used. At the bottom, an inlet gap is left between the plane of the foundation and the bottom edge of the bottom module. This allows fresh air to enter the enclosure. In the upper part in the roof module, an exhaust vent was used, protected from above by an EPTA plate acoustic silencer.
